Trimmer Manuals

 Bud - Leaf - Hydroponic Trimmer  Manuals from Manufactures

Service and Maintenance:

Trimpal Maintenance Sheet

Adjusting tension knobs

  1. Tighten tension knobs evenly until they are hand tight. Do not over tighten.

  2. Back knobs off two turns each.

  3. If further adjustment is needed adjust knobs evenly.*

*over tightening blades will result in shorter blade and motor life and may void warranty. Cleaning the basket and cutter.

(Clean before storage or every 250 units)

  1. Loosen the blade tension screws half way

  2. Loosen the motor hub bolt located on the inside of basket

  3. Remove basket and keyway*

  4. Loosen the blade tension knob completely

  5. Remove blade*

  6. Saturate basket and blade with olive oil and let soak

  7. Remove build up with alcohol and rag

  8. Insert blade into drum and tighten tension knobs half way

  9. Carefully insert basket onto hub. Replace keyway and tighten hub bolt.

  10. Tighten tension knobs evenly until they are hand tight. Do not over tighten.

  11. Back knobs off two turns each.

  12. Turn on machine with safety shield in place and lube blades with olive oil through oiling hole.



*Use protective gloves.

Basket lid and safety shield.

  1. Use only safe non ammonia cleaners appropriate for Plexiglas

  2. Store flat out of weather to avoid warping

Oiling basket

Every so often an oil or lubricant is needed to be sprayed directly on the basket while the machine is running. Pam Olive Oil spray is recommended, as it is not harmful or toxic if ingested if it should happen to get on the product of choice. There is no specific amount of time that should pass before lubricating the machine, but it is recommended that upon starting the machine and upon hearing any unusual sound or noise coming from the machine lubrication should also be applied immediately, resulting in a cease of the noise. Failure to lube basket will decrease the TrimPal’s overall performance and ultimately, reduce its total lifetime.


Loosen the black knobs connected to the saddle - (Turn at least 6 full rotations).

Step 1: Loosen the black knobs connected to the saddle – (Turn at least 6 full rotations).

Use a 11mm wrench to unscrew and remove the bolt holding the basket.

Step 2: Use a 11mm wrench to unscrew and remove the bolt holding the basket.

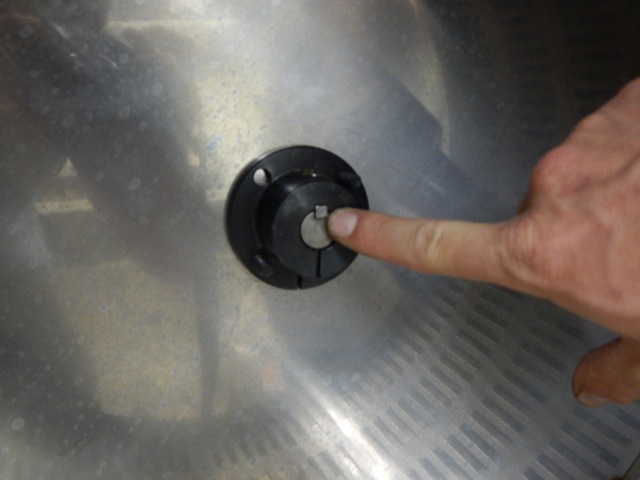

Collect the square alignment pin.

Step 3: Collect the square alignment pin.

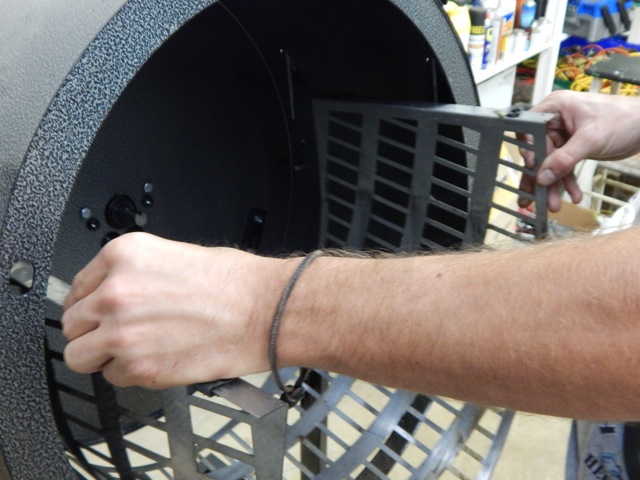

Grab the basket and slowly remove from the TrimPal machine and set aside.

Step 4: Grab the basket and slowly remove from the TrimPal machine and set aside.

Completely unscrew the black knobs until the saddle comes loose and can be removed.

Step 5: Completely unscrew the black knobs until the saddle comes loose and can be removed.

Clean with metal scraping tool and isopropyl alcohol.

Step 6: Clean with metal scraping tool and isopropyl alcohol.



greenbroz trimmer manuals

New Owner Support Materials

* Click any link to be directed towards content.

GBZ Limited Warranty | GBZ 2016 Dry Trimmer 215 User Manual

GBZ 2016 Alchemist 215 User Manual |  GBZ 2016 CannaGin 215 User Manual

GreenBroz Recommended Moisture Meter


GreenBroz Official Quick Start Guides

  GBZ CannaGin 215 Quick Start Guide |  GBZ Dry Trimmer 215 Quick Start Guide

GBZ Alchemist 215 Quick Start Guide

* Dry Trimmer 420 Quick Start In Progress


GreenBroz Equipment Training Support Content

GBZ Trim Tips

* Click any of the images above or HERE to access the growing supply of GreenBroz Training Videos.





TWISTER T4 OPERATION MANUAL

pdf manuals for trimmers



TRIMIT PRO DRY TRIMMER SET UP MANUAL



TRIMIT PRO PDF SET UP MANUAL DOWNLOAD

pdf manuals for trimmers

TWISTER T6 TRIMMER CLEANING Recommended Cleaning Solutions:

 Simple Green Industrial cleaner

 Rubbing Alcohol 99% Recommended Cleaning Intervals:

 Twister T6 Trimmer - Every 3 hours of use

 Twister T6 Leaf Collector- Every 8 hours of use Recommended Cleaning Methods:

 Twister T6 Trimmer - Remove control box, then hand clean machine only

 Twister T6 Leaf Collector Vacuum - Hand Clean Cleaning Instructions: Twister T6 Trimmer 1. The quickest way to clean the machine is to wash by hand. Pressure washing is NOT recommended. 2. Remove control box and hand clean. DO NOT get control box wet. It is not water tight. If using isopropyl, avoid getting it on the rubber non-skid feet. This will dry it out causing the rubber to flake. 3. Remove lid, tumbler, belt cover, chute, reel blade & bed knife and hand clean. DO NOT soak reel blade or bed knife assembly. You can clean most other parts by soaking in hot water and Simple Green, then rinse. For plastic parts, use only non-abrasive scrubbing pads. 5. Spray the entire machine with Simple Green and let sit for 5-10 minutes, rinse thoroughly. 6. Use compressed air to dry machine. Allow machine to completely dry before storing. Twister T6 Leaf Collector DO NOT pressure wash vacuum as the motor is not water tight. 1. Remove inlet cover. 2. Remove impeller (you will need a Pulley Puller 25-0009) and soak in hot water and Simple Green 3. Clean inside the impeller housing using Simple Green 4. Soak Vacuum bag in hot water and Simple Green and rinse.




trimit pro dry trimmer page two set up instructions

trimit pro dry trimmer page three set up instructions

trimit pro dry trimmer page four set up instructions

trimit pro dry trimmer page five set up instructions

Manufacturer Contact Information

Centurion Pro Solutions Inc.:  855-535-0558 or info@cprosolutions.com

DL Wholesale:  510-550-0018

EZ Trim: 303-635-6281 or  Info@eztrimming.com

GreenBroz: 844-DRY-TRIM or Email at info@greenbroz.com

Mean Green Trimming Machine: (503) 406-8186 info@trimdry.com

Pro-Cut: support@procutleaftrimmer.com or to 1-866-327-2251

ThunderVak: info@ThunderVak.com Tel: 1-450-226-2515

TrimPal: Phone: 916-955-2481 (California) Email Us: info@Trim-Pal.com

Triminator: 530.265.4277 info@thetriminator.com

Trimpro:  +1450-349-0811 or info@trimpro.ca

Twister Trimmers: CANADA 1-604-495-1895 TOLL FREE 1-888-254-3204
