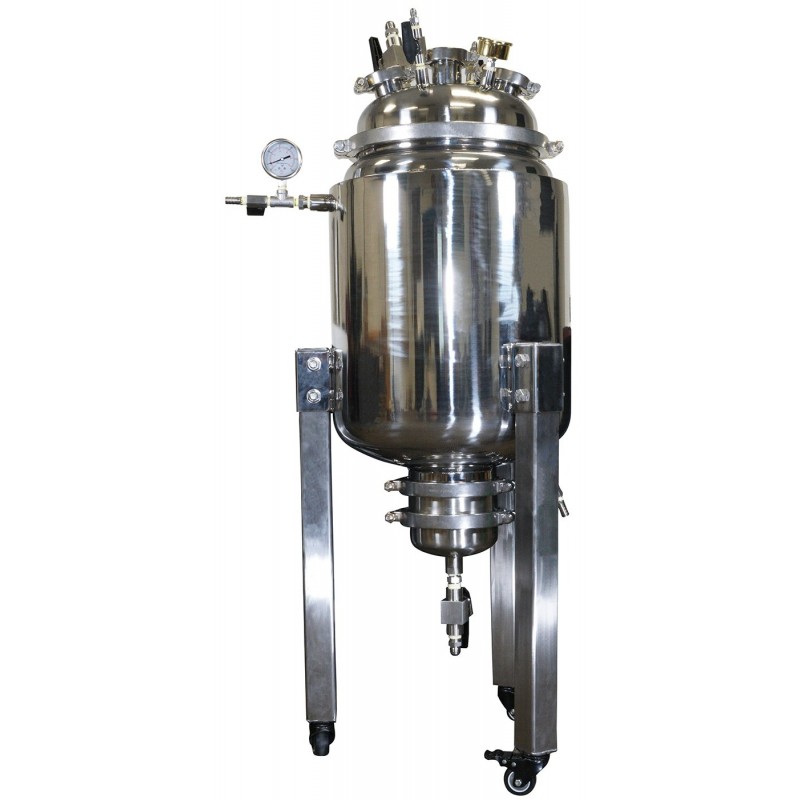

Pre-Built 50L Stainless Steel Jacketed Reactor

Pre-Built 50L Stainless Steel Jacketed Reactor

The 50L Stainless Steel Jacketed Reactor is designed for use with positive pressure. Glass reactors are only able to handle negative pressures which limits their usability. The vessel jacket can be used to circulate chilling fluid or as vacuum insulation. The vessel wild hold 50L (13 gallons) of liquid or 10 lbs of botanical material and the outer jacket capacity is 14.22L or 3.76 gallons of fluid.

Reaction Vessel Applications:

• • Ethanol Extraction

• • Winterization

• • Filtration

• • Pre-Chilling Solvent

• • Mixing & Homogenizing

Key Features:

• • Vessel Rated to 100 PSI MAX
  • 1/2" MJIC Connection

• • 1/4" MJIC Connection

• • High-Pressure Clamps

• • Minimal footprint

• • 12" Tri-Clamp top ferrule for easy loading and unloading

• • Lockable casters for mobility

• • 6" Tri-Clamp bottom ferrule for easy loading and unloading

• • Modular Tri-Clamp design

• • Polycarbonate sight glasses for easy viewing

• • 1/2" barb connection on the jacket

• • Alcohol resistant silicone gaskets.
