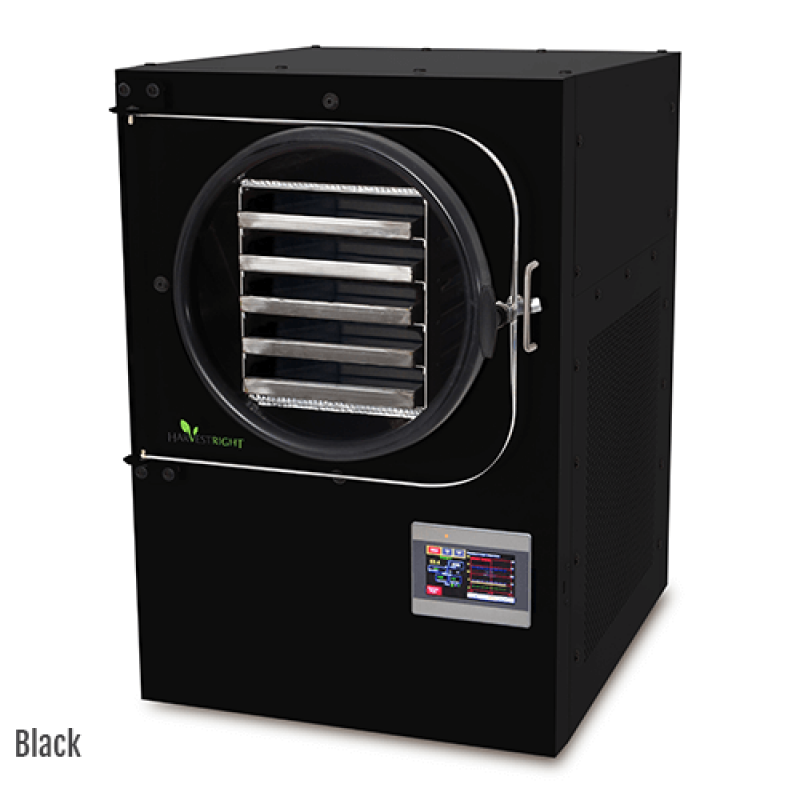

Harvest Right Large Scientific Freeze Dryer

Harvest Right Large Scientific Freeze Dryer

The perfect addition to any business or laboratory. Customize the freeze dry process to fit your specific needs. Control the temperature and pressure of the product you are freeze drying. Easily freeze dry 2,500 pounds of fresh product per year (12 – 16 pounds per batch). For use in commercial and scientific applications.

Package Includes:

• Commercial Grade Vacuum Pump
• Five (5) Stainless Steel Trays
• Owner’s Manual
• Power Cord (220 Volt)
• Insulator Door Pad

*See below for detailed product specifications.

Product Description

Harvest Right’s lyophilizer/freeze dryer is remarkable. For the first time ever, a high quality laboratory (scientific) unit is available in a high capacity table top model at an affordable price.

Key Features & Benefits

• Convenience of 5-tray dryer in a table top unit. Large capacity — capable of freeze drying as much as a 3.5 to 4.0 gallons of material.
• Full-color, touch-screen display.
• 4-liter ice condensing capacity.
• Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).

Technical Specifications

• Item:                                Freeze Dryer/Lyophilizer
• Style:                                Bench/Table Top
• Holding Capacity:          6.5 Liters of Sublimated Ice
• Min. Temp. Rating:        Collector cools to -46˚C (material being freeze dried cools to approx. -37˚C)
• Collector Material:        Stainless Steel
• Drying Chamber:           Included (Stainless Steel)
• Purge Valve:                   Included
• Voltage:                           220
• AMPS:                             <AC20
• Dimensions:                   32.5″ Tall x 22.5″ Wide x 25.5″ Deep
• Exterior:                          Powder Coated Aluminum
• Electronics:                    Includes a Full Color Touch Screen (4.3″ diagonal)
• Operation:                      Manual / Automated
  • Shelf Unit                         Has shelves for 5 trays
  • Shelf Heaters                   Heater temperature is user adjustable
  • Vacuum Pressure            Freeze dry cycles occur at user defined pressure

    ---

    Additional Information

    Color	Satin White, Black
    Size	32.5″ Tall x 22.5″ Wide x 25.5″ Deep
    Capacity	3.5 – 4 Gallons
    Trays	Five 9” W x 20.5” L x .75” H Trays
    Weight	147 lbs.
    Power	220 Volt
