Jack Puck Square 8 TON Press

Jack Puck Square 8 TON Press

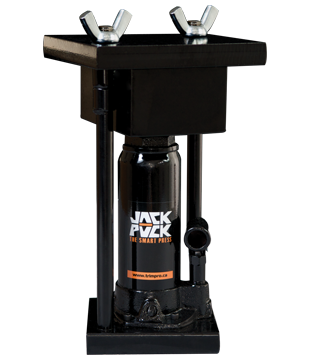

The JACK PUCK are revolutionary presses created to transform plants extracts into a compact paste and to remove water excess. Their mould is dismountable, allowing it to be warmed up in the oven to improve its effectiveness.

Equipped with a 2 ton or a 8 ton load capacity hydraulic jack, the JACK PUCK are light and compact presses easy to carry.

JACK-PUCK 8T SQ
Dimensions : 7" x 8" x 14-3/4"

User Instructions:
1. Fix the press to a table with the two 'C' clamps supplied.
2. Put the extracts in the mould.
3. Put on the cover and tighten it up with the wing nuts.
4. Tighten the release valve with the handle (clockwise).
5. Compress the extracts with an up-and-down movement of the handle.
6. Loosen the release valve using the handle (counterclockwise).
7. Remove the cover by removing the wing nuts first.
8. Put back on the wing nuts without installing the cover.
9. Tight the release valve with the handle (clockwise).
10. Remove the compressed extracts from the mould using an up-and-down movement with the handle.
11. Loosen the release valve using the handle (counterclockwise).
12. Bring down the mould's base using your fingers.

• Warning:
• Do not use the jack for any other uses than this press.
• Never use a long handle than the one supplied with the press.
• Never turn the release valve more than one full turn. Do not unscrew release valve completely.
• Never heat the mold, the moulds base or the cover over 200F.
• Use the press on hard, levelled and solid surfaces only.
• Keep oil at the correct level at all times.
