The Rosin Roller™ is the first rosin extractor designed specifically for large scale production. The traditional rosin press design applies pressure to dual heated plates. This causes a limitation for commerical scale production as when plates sizes increase to accommodate more material, the larger surface significantly reduces pressure. Additionally, large plate sizes cause the oil to degrade as during pressing it sits on heated plates, unable to escape.
As such we concluded early on that the key to large scale production is to create a continuous feed of small batch presses. As we developed and tested this technology, we have found not only an increase in speed of production, but a significant increase in yield per press. By pushing the oil out in one direction we are able to capture a higher percentage of essential oils.

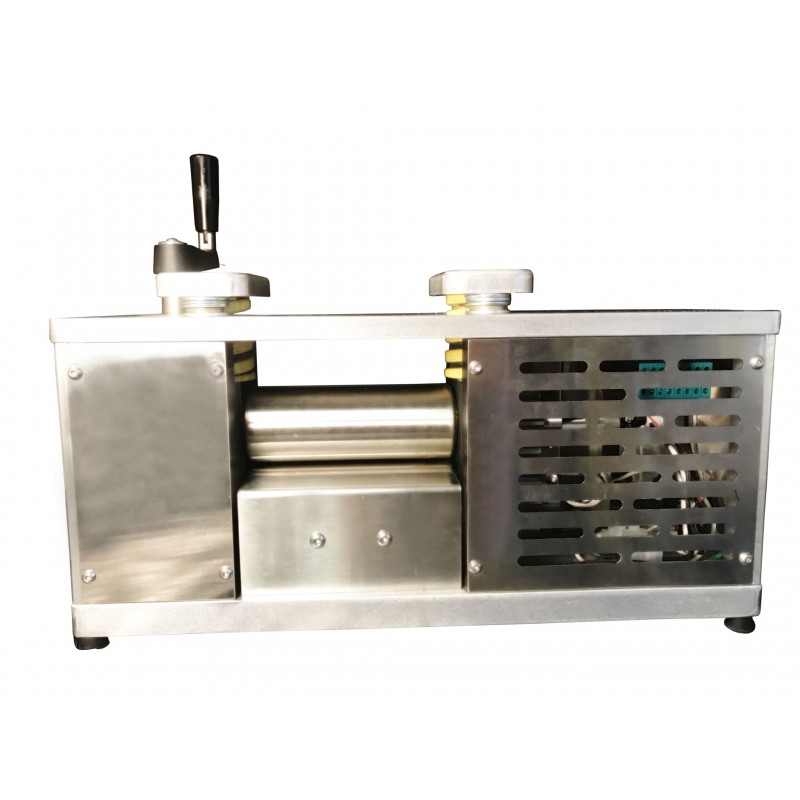

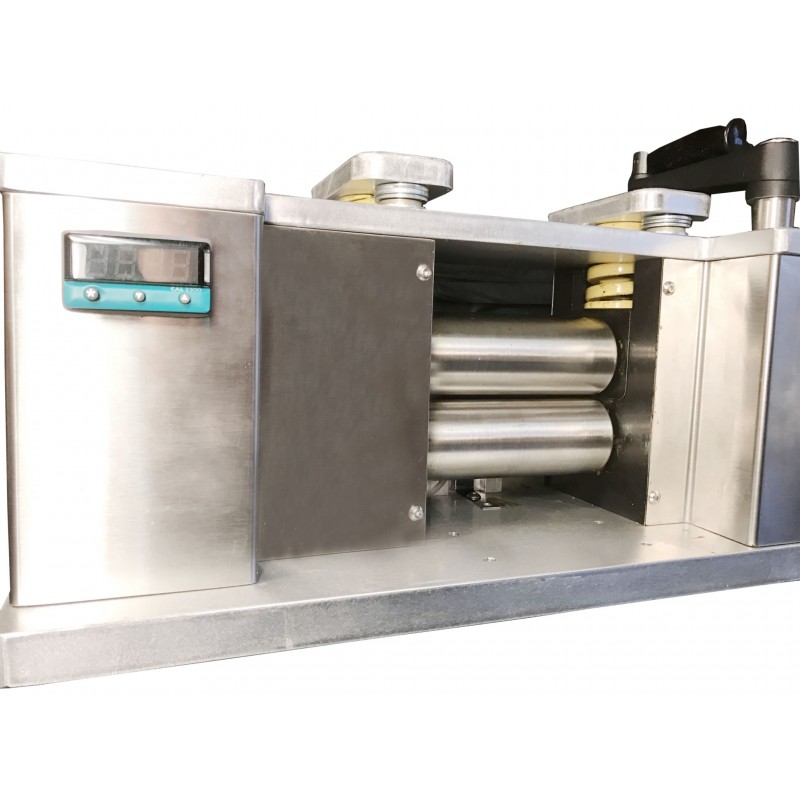

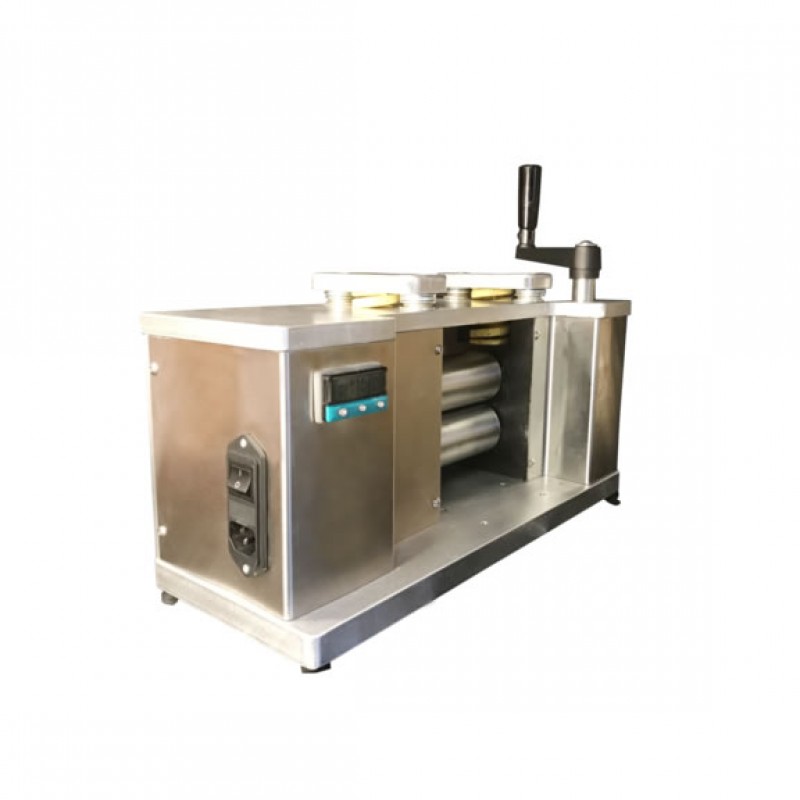

Rosin Roller™ is built with 5 inch stainless steel rollers. Fully adjustable pressure range operating between 500LB to 3,000LB PER SQUARE INCH. Since the contact point of the rollers is a thin line, not a large plate surface we are able to achieve much higher pressure with less applied force.
Rosin Roller™ Specs:
- 5 inch stainless steel rollers
- Adjustable pressure ranging from 500LB to 3,000LB PER SQUARE INCH
- PID Controller
- Manual speed control
- The machine operates on 110V and weighs 80LBs.
If you are familiar with the recent history of the Rosin Technique, then you know in early 2015 it was popularized on Instagram by people posting their results with hair straighteners. The convenience and safety with which a whole plant medicine could be created forever changed the concentrate market. Equiptment rapidly sprung up utilting a pressure mechanism and dual heated plates. While significant advancements have been made since rosin market was born, the traditional rosin press is designed in a way that limits the ability to process on large scale. With a heat plate design, increasing platens is the only way to process more material per press, but a larger surface area reduces the pressure applied and in turn the overall yields. Additionally, if using a larger plate size, the oil will be unable to properly escape the platens and the quality will degrade significantly.
The Rosin Roller™ is the first in a series of industrial rosin extraction equipment, using a patented technology to allow for a continuous feed of production. We concluded early on that the key to large scale production is to create a continuous feed of small batch presses. As we developed and tested this technology, we have found not only an increase in speed of production, but a significant increase in overall yield. By pushing the oil out in one direction we are able to capture a higher percentage of essential oils.
