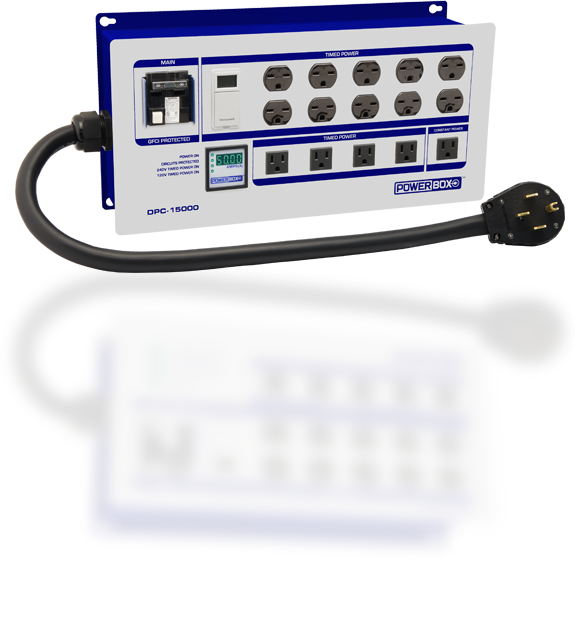

Powerbox® DPC-15000

Powerbox® DPC-15000

When you are running lights in increments of 10, the Powerbox^® DPC-15000 is our top-selling model. This model has all of the features you need to keep your lights running safely and at peak efficiency.

    You get the ultimate in protection, thanks to a microprocessor-controlled GFCI main circuit breaker that can sense a wide variety of dangerous conditions on downstream loads and instantaneously de-energize all connected devices, helping to prevent things like fire and electrocution. Plus you get features like a digital ammeter to monitor load usage and a digital timer to control light cycles.

    Designed and manufactured in California from the best industrial-grade components, the DPC-15000 is ETL Listed, UL Approved and CAN/CSA Approved.

    Setup is fast and easy. Plug directly in to a 240-volt range-type outlet (NEMA type 14-50r) to be up-and-running in minutes, or hardwire directly to your panel. Rated for continuous capacity, there are 50 Amp and 60 Amp versions available.

    There are a total of TEN NEMA type 6-15 240V outlets to power your lights, and 5 NEMA type 5-15 outlets to run your light-duty accessories. A digital timer with battery backup controls light cycles. An optional trigger cord port allows other controllers to override the timer and control the Powerbox^® directly.



    Safe, quick to install, and easy to use. Don't even consider plugging your expensive gear into a cheap controller. Lighting requires more power than anything else in your garden, so when safety and reliability matter, Powerbox^® is your only choice.

FEATURES:



• Microprocessor-controlled main GFCI circuit breaker helps prevent fire & electrocution.
• Protection tabs to prevent accidental breaker shutoff.
• Digital ammeter shows load usage in real time.
• Programmable digital timer to control light cycles.
• Battery backup to store timer programs during power outages.
• Ten NEMA type 6-15 240-volt outlet receptacles
• Five NEMA type 5-15 120-volt outlet receptacles
• Trigger Cord Port allows use of an optional trigger cord to override the built-in timer.
• Optional Accessory Port allows use with other controllers, like a high-temp shutoff.
• Four foot main power cord, with custom lengths available.
• Plug & Play into 4-prong range-type outlet (NEMA 14-50r), or hardwire to panel.
• Durable powder coated 14 gauge seamless steel enclosure.
• Keyhole tabs 16" on center for easy mounting to wall studs.
• INPUT: 240VAC, Rated for 50A, or 60A at 240V, 4-Wire Connection.
• Three Phase compatible models available.
• ETL Listed, UL Approved, CAN/CSA Approved.
• Designed and manufactured in California.
• Five-year warranty - Legendary Powerbox^® quality.
